MANTA W+便携式光纤端面检测仪
MANTA W+ Part Number: SMX-MANTA-W+
- 4.1mm x 3.omm field of view
- 0.75μm缺陷检测
- Fast inspection speeds
Evaluation units available.
给我们发电子邮件 sales@senko.com 或与您当地的SENKO销售代表讨论价格问题。

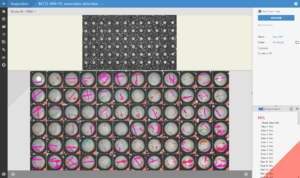

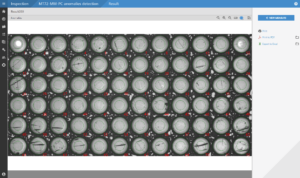

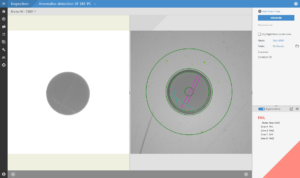

ǞǞǞ MANTA W+ inspection scope is designed for high performance inspection for single fiber and multi-fiber optical assemblies. There is a large portfolio of inspection tips for the MANTA W+ available for all types of connectors, ferrules and optical transceivers including MT, MPO, CS, SN, SN-MT, LC, SFP, FC, SC, E2000, QSFP, OSFP, ELSFP, ARINC, multiple sizes of MIL 29504 termini, SMA and many more. The MANTA W+ is able to do a full inspection and reporting of a 12 fiber and 16 fiber MT array in 2 seconds. The 巨大的视觉效果 inspection software has an autofocus feature for accurate and repeatable inspections. The software default is set to IEC 61300-3-35 and has the ability for customizing the pass-fail measurements for customized reports and for addressing the inspection needs for specialty fibers like PM fiber, multicore fiber, mixed fiber arrays and more.
| 森科零件编号。 | SMX-MANTA-W+ |
| Field Of View: | 4.1mm x 3.0mm (Tips available for viewing guide pins/guide pin holes for MT) |
| 缺陷检测。 | 0.75μm |
| Image resolution: | 1.8μm |
| Inspection Times: | 1 sec for single fiber 2 secs for 12 fiber MT 2 secs for 16 fiber MT 4 secs for 24 fiber MT 8 secs for 72 fiber MT |

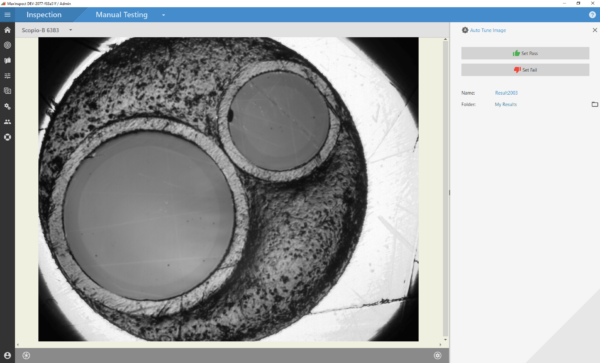

| Reporting Options: | Auto focus and manual focus Auto pass-fail with indicator light IEC 61300-3-35 Ed 2 and Ed 3 Reporting (Default) Customized inspection criteria, lighting profiles and fields of view Inspection profiles for large core, multi core, Polarization Maintaining (PM) fibers |
| 操作系统。 | Windows Android (mobile devices) |
| 尺寸： | 77mm (3″) height 28mm (1.1″) width 249mm (9.8″) length |
| 重量： | 491g (1.1 lb) |
| BENCHTOP STAND 森科零件编号。 MNT-STAND-W  | MOBILE INSPECTION KIT 森科零件编号。 MNT-PHONE-KIT
| SINGLE FIBER TIP ADAPTER 森科零件编号。 MNT-ADP  |
| MPO POLARITY MODULE 森科零件编号。 MPO-VERIFIER | SN-MT POLARITY MODULE 森科零件编号。 SN-MT-VERIFIER  | VERIFICATION ARTIFACT 森科零件编号。 MNT-REF-2.5/PC-1UM  |
Click the link to access the PDF handout for part numbers and images of the inspection tips.
- 检查指南 SC/UPC 和 SC/APC unmated and in adapter assemblies
- 检查指南 FC/UPC 和 FC/APC unmated and in adapter assemblies
- 检查指南 ǞǞǞ unmated and in adapter assemblies
- 检查指南 MIL DTL 38999 using 1.6mm pin (M29504/4) and socket (M29504/5) termini
MANTA W+范围需要连接到运行Windows 10或更高操作系统的个人电脑，该电脑配备英特尔酷睿i5或更高的处理器，至少有4GB的内存。个人电脑必须至少有一个USB 3.0端口用于连接。MANTA W+可以连接到运行Windows 10或更高版本的平板电脑，配备英特尔酷睿i7处理器和4GB的内存。屏幕分辨率应是1280 x 800 px或更高的10英寸或更大的显示器。
运行最新版本的MaxInspect软件的MANTA W+检测范围非常快。 测量时间为：2.1秒，12纤维MT端面2.3秒，16纤维MT端面4秒，24纤维MT端面7.7秒，72纤维MT端面。
MANTA W+的尺寸为高7厘米（2.7英寸）×宽2.8厘米（1.1英寸）×长24.6厘米（9.7英寸）。该装置的重量为491克（1.08磅），使其成为台式应用的理想选择。
是的! 如果你正在考虑购买一个高性能的检查范围，如我们的 MANTA W+你要确保检查范围能够满足你的需要，有准确和可靠的测量。 最好的方法是验证是否 MANTA W+ 将满足你的要求是得到一个评估单位在你手中。 森科团队将与你一起完成整个过程的每一步。 开始的第一步是与你当地的森科销售代表交谈，或给我们发电子邮件 sales@senko.com.
