Key Featured Products
Learn more about the main Fetures of Senko MPO Plus

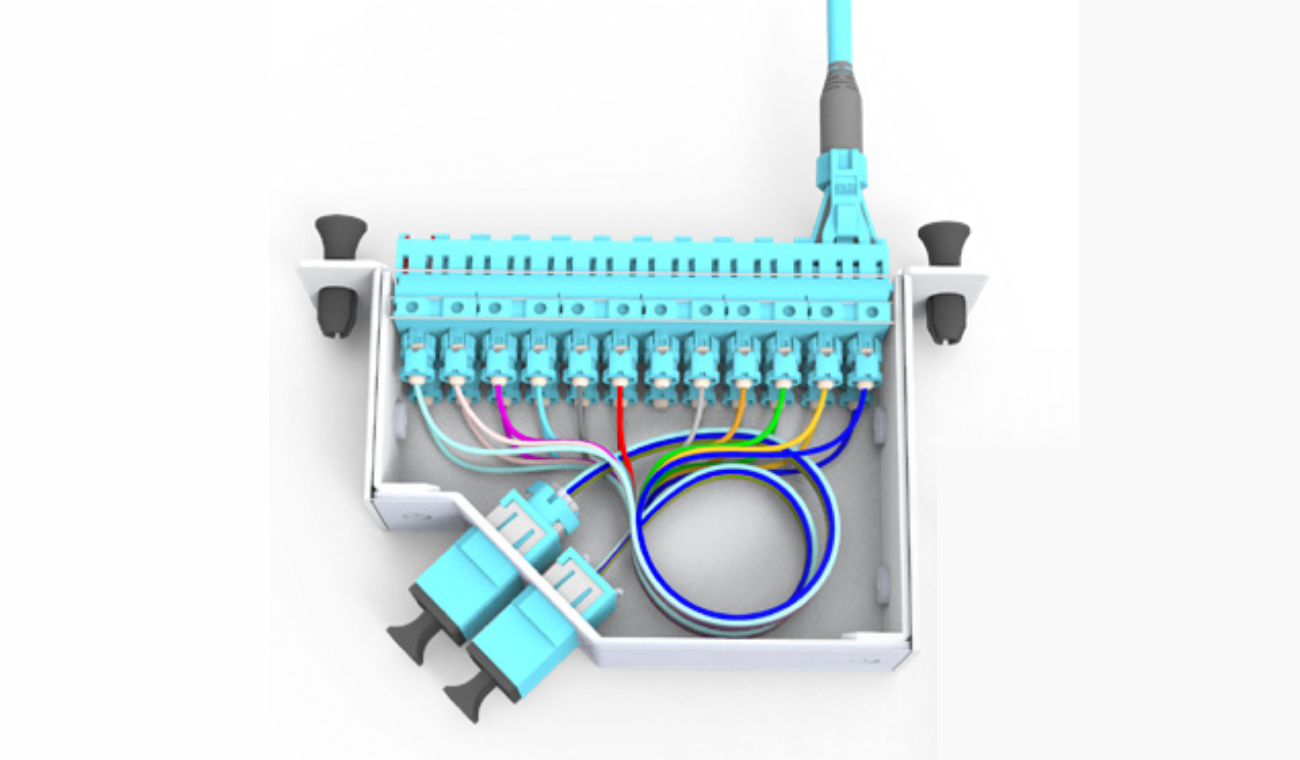

Example of MPO Bayonet connector used in a cassette.
MT Ferrules and Guide Pin
SENKO’s MT Ferrule, made from high quality glass filled PolyPhenylene Sulfide (PPS) is used with our MPO Plus Connectors and tested against the stringent requirement of Telcordia’s GR-1435.
MT Super Low Loss Ferrule
- Industries lowest insertion loss
- 12F SM low loss typical IL < 0.1dB
- Fiber counts up to 32 fiber
- IEC and TIA Compliance
Advanced Guide Pins
- Tolerance of +/-0.1um for SM Super Low Loss pins
- SM, SM Super Low Loss, MM, and MM Super Low Loss grades
SENKO MT Ferrule is able to achieve the lowest industry insertion loss of 0.25dB guaranteed with a typical IL of greater than 0.1dB for the SM and MM Low loss ferrule. SENKO’s Low Loss ferrules are made to meet the new IEC 61755-3-31 Grade B requirements. In order to see a full specs table please ここをクリック
SENKO’s new 3.0mm and 3.6mm boot addition for the MPO Plus connectors. The Flex-Angle boot is designed to bend and maintain any angle or direction from straight to 90°. The boot is molded over a single stainless steel wire and can be easily positioned by hand. The internal wire holds the boot at the desired angle or direction.
