MANTA W+の検査範囲
MANTA W+ Part Number: SMX-MANTA-W+
- 4.1mm x 3.omm field of view
- 0.75μmの欠陥検出
- Fast inspection speeds
Evaluation units available.
メールでのお問い合わせはこちら sales@senko.com または、お近くのSENKO販売代理店までお問い合わせください。
があります。 MANTA W+ inspection scope is designed for high performance inspection for single fiber and multi-fiber optical assemblies. There is a large portfolio of inspection tips for the MANTA W+ available for all types of connectors, ferrules and optical transceivers including MT, MPO, CS, SN, SN-MT, LC, SFP, FC, SC, E2000, QSFP, OSFP, ELSFP, ARINC, multiple sizes of MIL 29504 termini, SMA and many more. The MANTA W+ is able to do a full inspection and reporting of a 12 fiber and 16 fiber MT array in 2 seconds. The マキシンペクト inspection software has an autofocus feature for accurate and repeatable inspections. The software default is set to IEC 61300-3-35 and has the ability for customizing the pass-fail measurements for customized reports and for addressing the inspection needs for specialty fibers like PM fiber, multicore fiber, mixed fiber arrays and more.
センコー品番 | SMX-MANTA-W+ |
Field Of View: | 4.1mm x 3.0mm (Tips available for viewing guide pins/guide pin holes for MT) |
欠陥の検出。 | 0.75μm |
Image resolution: | 1.8μm |
Inspection Times: | 1 sec for single fiber 2 secs for 12 fiber MT 2 secs for 16 fiber MT 4 secs for 24 fiber MT 8 secs for 72 fiber MT |
Reporting Options: | Auto focus and manual focus Auto pass-fail with indicator light IEC 61300-3-35 Ed 2 and Ed 3 Reporting (Default) Customized inspection criteria, lighting profiles and fields of view Inspection profiles for large core, multi core, Polarization Maintaining (PM) fibers |
オペレーティングシステム。 | Windows Android (mobile devices) |
寸法 | 77mm (3″) height 28mm (1.1″) width 249mm (9.8″) length |
重量です。 | 491g (1.1 lb) |
BENCHTOP STAND センコー品番 MNT-STAND-W | MOBILE INSPECTION KIT センコー品番 MNT-PHONE-KIT
| SINGLE FIBER TIP ADAPTER センコー品番 MNT-ADP |

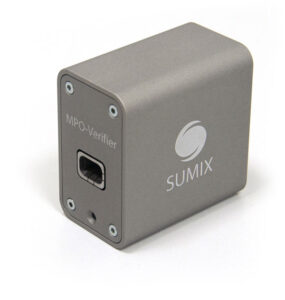

MPO POLARITY MODULE センコー品番 MPO-VERIFIER | SN-MT POLARITY MODULE センコー品番 SN-MT-VERIFIER | VERIFICATION ARTIFACT センコー品番 MNT-REF-2.5/PC-1UM |
Click the link to access the PDF handout for part numbers and images of the inspection tips.
- 点検のためのガイド SC/UPC と SC/APC unmated and in adapter assemblies
- 点検のためのガイド FC/UPC と FC/APC unmated and in adapter assemblies
- 点検のためのガイド ST unmated and in adapter assemblies
- 点検のためのガイド MIL DTL 38999 using 1.6mm pin (M29504/4) and socket (M29504/5) termini
MANTA W+スコープは、Windows 10以上のOSを搭載し、Intel Core i5以上のプロセッサーと4GB以上のRAMを搭載しているPCに接続する必要があります。PCには接続用のUSB3.0ポートが最低1つ必要です。MANTA W+は、Windows10以上を搭載し、Intel Core i7プロセッサーと4GBのRAMを持つタブレットに接続することも可能です。10インチ以上のディスプレイで、画面解像度は1280 x 800 px以上である必要があります。
最新バージョンのMaxInspectソフトウェアが動作するMANTA W+検査スコープは、非常に高速です。 測定時間は、12ファイバーMT端面2.1秒、16ファイバーMT端面4秒、24ファイバーMT端面7.7秒、72ファイバーMT端面2.3秒となっています。
MANTA W+の寸法は、高さ7cm(2.7インチ)×幅2.8cm(1.1インチ)×長さ24.6cm(9.7インチ)です。重量は491gで、ベンチトップ用途に最適です。
はい。 のような高性能な検査用スコープの購入を検討されている方は、ぜひ参考にしてください。 MANTA W+そのため、検査用スコープが正確で信頼性の高い測定を行い、お客様のニーズを満たすことができるかどうかを確認する必要があります。 そのためには MANTA W+ センコーの評価機は、お客様のご要望にお応えするためのものです。 センコーのチームは、プロセスの各ステップを通じて、お客様とともに歩んでいきます。 まずは、お近くのセンコーの営業担当者にご相談いただくか、以下のメールアドレスにご連絡ください。 sales@senko.com.
