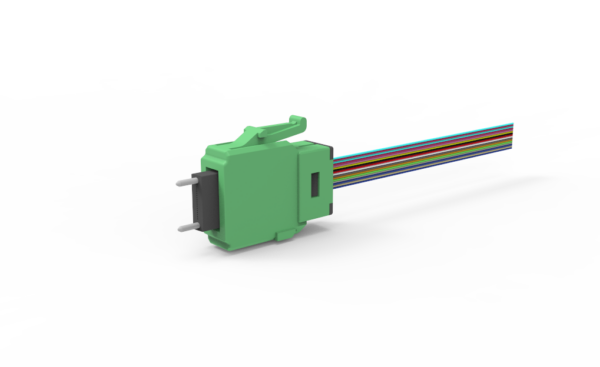

Mini-conector SN-MT
The SN-MT Mini Connector is designed for high density applications with its very compact size. The SN-MT Connector is offered in 16F, and has 2.7 x the density than 16F MPO. The SN-MT Mini Connector fits on the behind the wall side of the SN-MT Mini adapter and mates using a latch. The SN-MT Mini Connector is the smallest form factor in the series.
- A menor pegada em série
- Baixa perda oferecida em 8F e 16F
- Adaptador com SN-MT Mini
Parâmetros 1 | Modo único |
16-Fiber | |
Baixa perda | |
Perda típica de inserção (dB) | 0.15 |
Perda Máxima de Inserção (dB) | 0.35 |
Perda típica de retorno (dB) | ≥60 |
Temperatura de operação (°C) | - 40 a +75 |
Durabilidade | SM <0.3dB mudança típica, 50 esteiras |
Notas:
1. Os parâmetros listados são especificações de destino.

O SN-MT Mini só vai para a parte de trás do adaptador SN-MT Mini.
