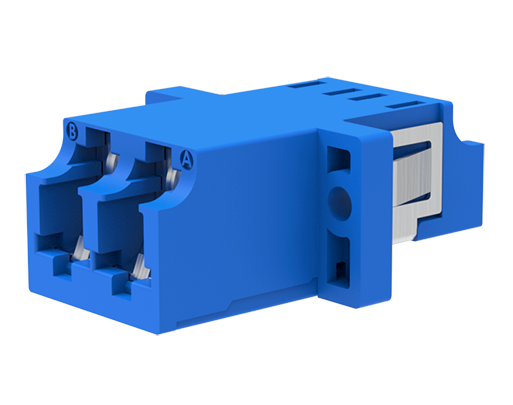

LC Dust Shutter Adapter

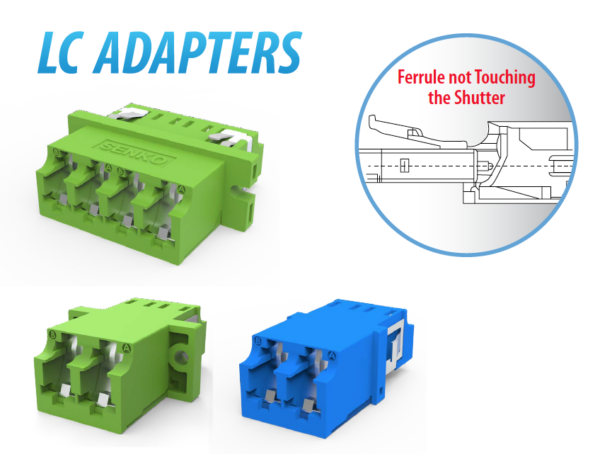

SENKO’s LC dust shutter adapter utilizes an integral hands-free shutter mechanism that protects the behind the wall connector from dust contamination when the port is not in use. Duplex and Quadruplex adapters fit panels with SC and SC DX footprint

  • Dust and laser protection
  • One-piece body design

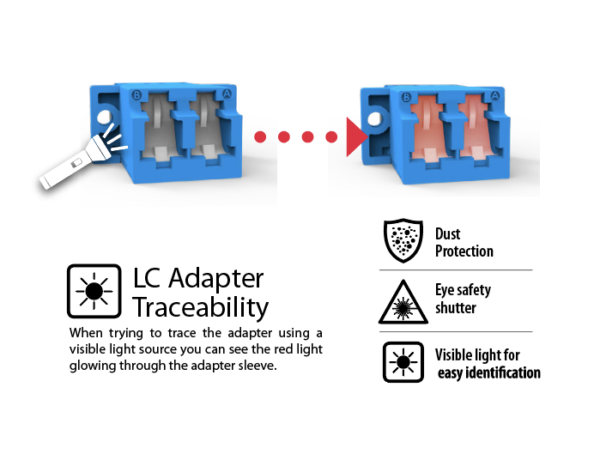

  • Traceability with visible light source
  • IEC TR 62627-08 power compliance



Parameters Specifications
Typical Insertion Loss (dB)* 0.10
Max Insertion Loss (dB)* 0.20
Operating Temperature (°C) -40 to +75
Humidity Resistance 95%
Durability 200 matings per GR-326-Core

* Based on Master Grade jumper to Low Loss random mating test



Data Center

On Board Optics

Medical

Wireless

Telecommunications

logo-rosh
Reach logo
IEC logo
TIA logo

The LC adapter can be used in temperatures as low as -40°C and up to 75°C.

Yes, it will work with all industry standard LC connectors.

This is available in blue, green, violet and aqua.
