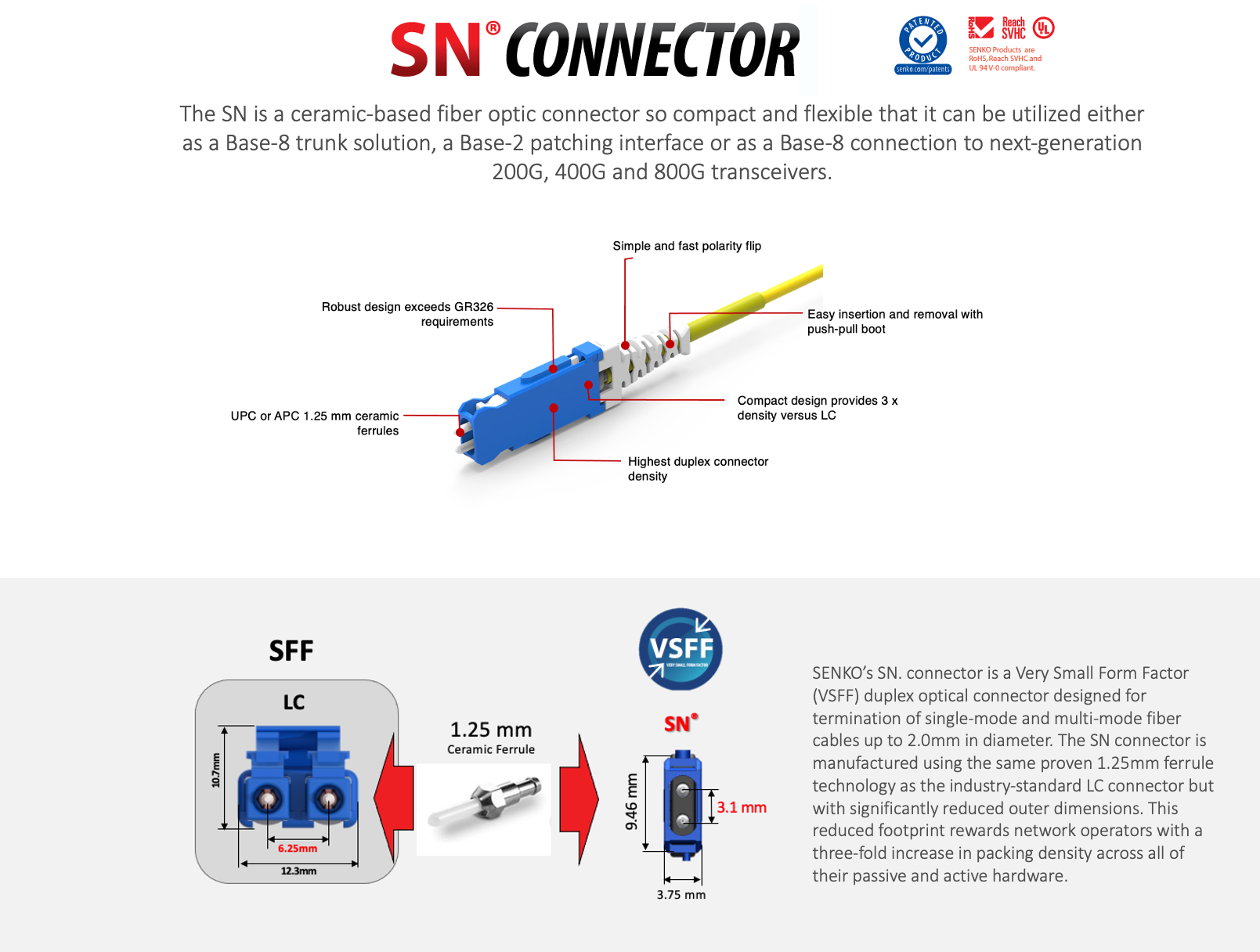

SN-Intro

forget-the-past

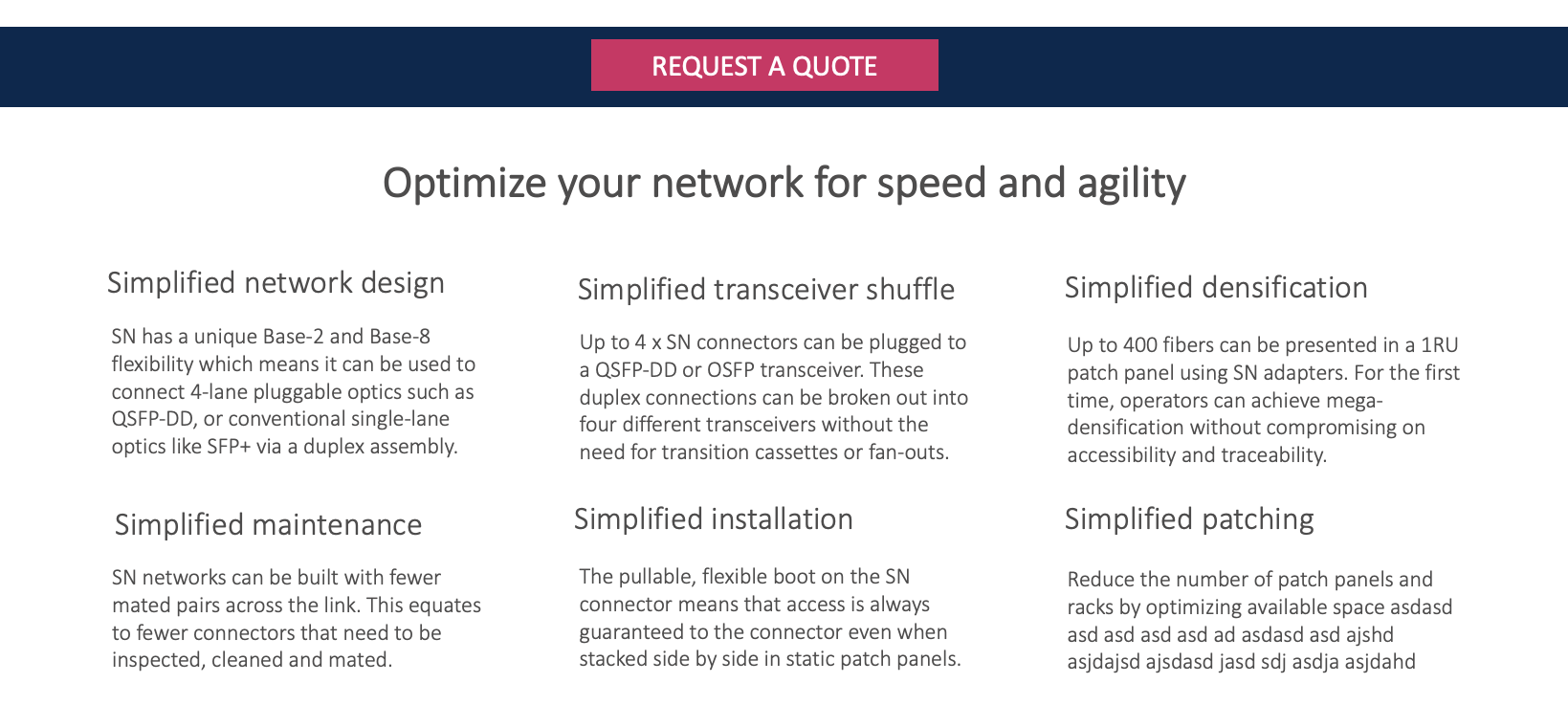

Request-a-quote

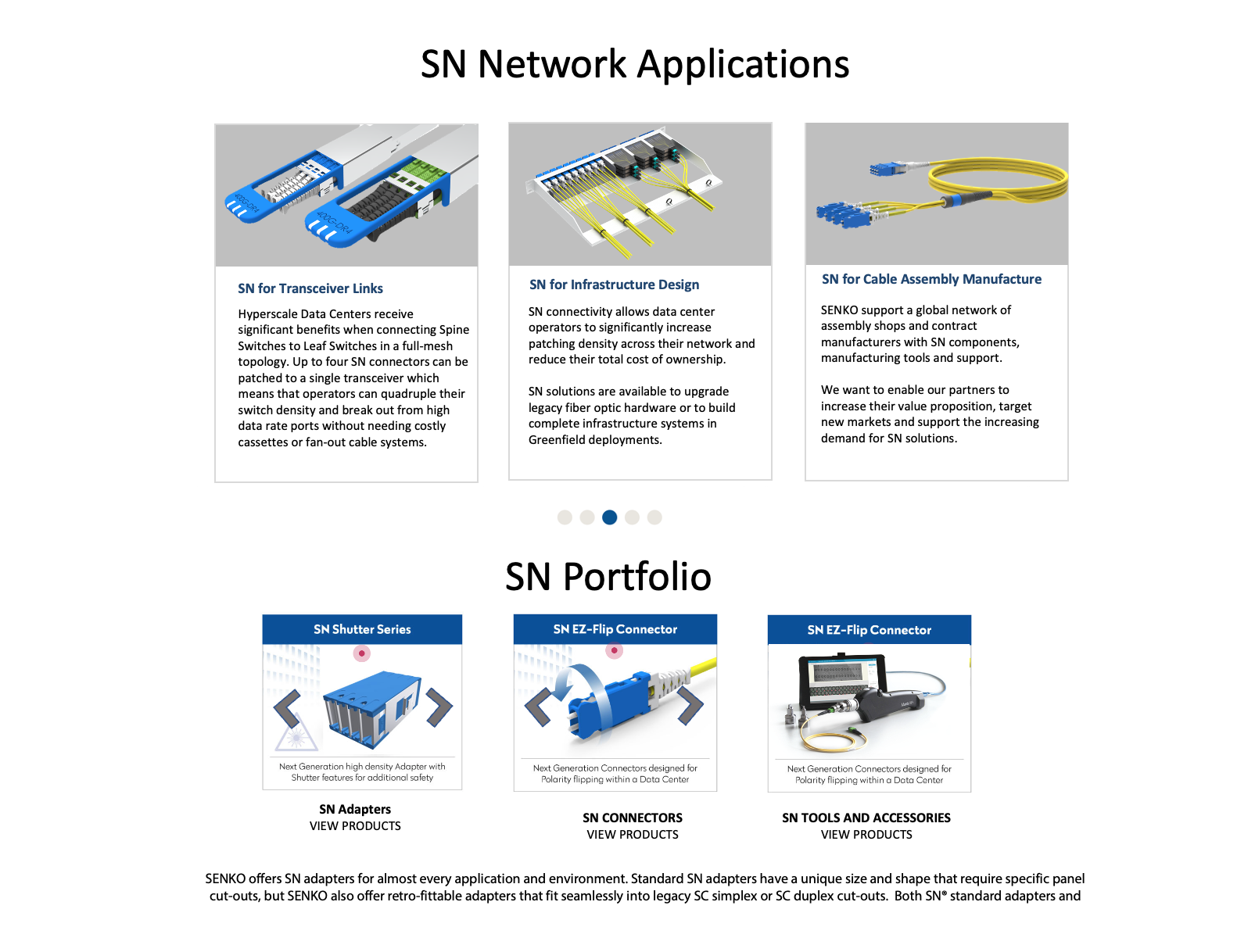

Applications

Wirewerks



starter-kit

SN Resources

SN Series Video Plylists

Latest News about the SN

Upcoming Events

  • Laser-Focus

    Optica Laser Congress and Exhibition (Barcelona)

    December 11, 2022 @ 8:00 am - December 15, 2022 @ 5:00 pm EST

    The congress is comprised of three topical meetings that provide a comprehensive view of the latest advances in lasers and...

  • Screen-Shot-2022-04-13-at-7-07-39-AM

    Photonics West

    January 28, 2023 @ 8:00 am - February 2, 2023 @ 5:00 pm EST

    Prepare to experience the energy of Photonics West 2023 in San Francisco. Browse the the 2022 program as you plan...

  • Unknown

    BICSI Winter

    February 5, 2023 @ 8:00 am - February 9, 2023 @ 5:00 pm EST

View All Events

Our Interactive Solutions can help you with what you need!

Learn More

How to Select the right SN Connector for your project

How-to-select-SN-1-

GREAT Choice !

This is the Premium option for our SN Connector, featuring the ability to switch polarity without retermination, and an easy assembly procedure for this preassembled connector kit.

To find out how easy is to switch polarity with the SN EZ-Flip connector please watch our SN Video

Now it’s time to select the right SN adapter to use with the SN EZ-Flip connector

If you feel you are ready to request a quote, you can use our product configurator

GO BACK ^

How-to-select-SN-2

Interesting Choice !

SENKO’s SN® 1.6mm Standard Connector has been designed and optimized for 400G new generation Data Center applications and has been adopted to transceiver applications including QSFP-DD. The duplex design utilizes a unique Push-Pull boot for superior manageability and simple installation and removal from transceivers and adapter panels.

To find out how more about the SN Standard connector please watch our SN Video

Now it’s time to select the right SN adapter to use with the SN connector

If you feel you are ready to request a quote you can use our product configurator

GO BACK ^

How-to-select-SN-3

Space Saving is important !

This is the BTW option for our SN Junior Connector, featuring a latch locking mechanism.

To find out more about Senko SN Junior connector please watch our SN Video

Now it’s time to select the right SN adapter to use with the BTW connector

If you feel you are ready to request a quote you can use our product configurator

GO BACK ^

How to Select the right SN Adapter for your project

GO BACK ^

Even more space saving options with Compact and Mini

More info

SN-Adapter-Premium-1


The SN adapter with SN footprint accepts SN Connector and SN Junior connector on the junior side, and SN connectors on the senior side. All SN adapters are available with either a full flange or reduced flange depending on how the adapters are fixed to hardware. The reduced flange allows adapters to be stacked in close proximity for maximum packing density.
Ready to request a quote? you can use our configuratorGO BACK ^
SN-Adapter-with-Shutter

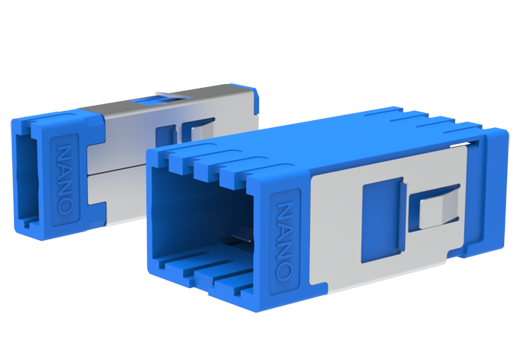

The SN shuttered adapters are available either as a 1-channel or 4-channel variant. The 1 CH version is designed for applications requiring the separation of individual optical channels. The 4CH version is designed for maximizing port density within patch panels. When the connector is inserted into the adapter, the body of the connector (not the ferrule) pushes the shutter open so that the ferrules can be guided into the adapter sleeve.

Ready to request a quote? you can use our configurator

GO BACK ^

SN-Adapter-SC-Footprint-1

The SN adapter with SC footprint accepts SN Connector and SN Junior connector on the junior side, and SN connectors on the senior side. All SN adapters are available with either a full flange or reduced flange depending on how the adapters are fixed to hardware.

Ready to request a quote? you can use our configurator

GO BACK ^

SN-Adapter-SC-Footprint-with-Shuttered

SENKO’s SN shuttered adapters are available either as a 2-channel (4 fibers) or 4-channel variant (8 fibers). When the connector is inserted into the adapter, the body of the connector (not the ferrule) pushes the shutter open so that the ferrules can be guided into the adapter sleeve.

Ready to request a quote? you can use our configurator

GO BACK ^

Even More Options for Space saving

SN-Adapter-SC-Footprint

SENKO’s SN® Compact Connector is designed specifically for the Compact adapter series. This series allows for specialty usage in 3 channel and 6 channel applications. Similar to the SN Junior, the small duplex connection is used for high density situations such as behind the wall (BTW), cassettes, and modules where space is limited. The connector features a latch locking mechanism to confirm engagement prior to deployment.

SN-Mini-Adapter

SENKO’s SN® Junior connector is designed for special small duplex connection needs for high density situations such as behind the wall (BTW), cassettes, and modules where space is limited. The connector features a latch locking mechanism to confirm engagement prior to deployment. The connector uses the widely deployed 1.25 mm ferrule technology that has been used in LC connectors for decades.
