SN Adapter Non-Shuttered SC Footprint

SENKO’s SN® SC-Shaped non-shuttered adapters are available either as a 2-channel (4 fibers) or 4-channel (8 fibers) variant. The 2-channel type is designed to fit legacy hardware incorporating an SC simplex (LC duplex) cut-out. The 4-channel version is designed to fit into legacy hardware incorporating the SC duplex (LC quad) cut-out.These retro-fittable adapters are the ideal choice for cabling providers or equipment manufacturers that want to upgrade their systems to SN hyper-density without redesigning new panels or hardware.

SN Licensees



  • SC simplex and duplex types
  • Telcordia, ANSI, TIA and IEC Compliant

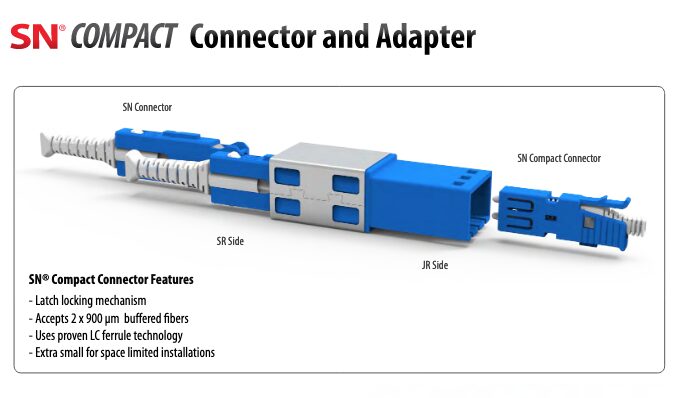

  • Mates SN standard and junior connectors
Parameters Specifications
Typical Insertion Loss (dB)* 0.10
Max Insertion Loss (dB)* 0.20
Operating Temperature (°C) -40 to +75
Humidity Resistance 95%
Durability 200 matings per GR-326-Core

* Based on Master Grade jumper to Low Loss random mating test

  • Upgrading existing fiber management hardware from SC/LC to SN
  • Improved rack-space utilization in Brownfield data centers
  • High-density centralized cross-connects and patch panels
  • Mixed fiber panels combining different connector types
logo-rosh
Reach logo
IEC logo
TIA logo
GR-326-Website

The SN adapter can be used in temperatures as low as -40°C and up to 75°C.
