MANTA+V2 Benchtop

PART NUMBER: SMX-MANTA+V2

  • Ideal for MIL spec connectors
  • Large field of view (2.4mm x 1.8mm)
  • Benchtop stand available

Email us at sales@senko.com or talk with your local SENKO Sales Representative for pricing.

PARAMETERS SPECIFICATIONS
SENKO Part Number SMX-MANTA+V2
Primary Use Single Fiber

MIL spec connectors

SMA connectors

Type Handheld and benchtop
Field of view 2.4 mm × 1.8mm
Defect size detection 0.75μm
Optical resolution 1.8μm
Magnification¹ 290x
Focus Autofocus/ Manual
Camera type Digital, USB 3.0
Power source USB 3.0/2.0 Port of PC
Cable USB 3.0, Detachable
Compatible with Desktop PC, Laptop, Tablet
Dimensions (H × W × L) 75 × 28 × 233 mm

(2.95 × 1.1 × 9.17 inches)

Weight 425 g

(0.94 lbs)

1 Calculated for 24’’ screen (1920 × 1080)

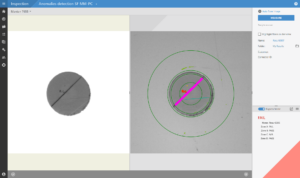

MANTA+V2 benchtop inspection scope is a portable microscope probe designed for inspection of all types of single fiber with a ride range of inspection tips including CS, SN, LC, FC, SC, E2000™, QSFP, ARINC, MIL Spec termini, High-power SMA and more. The MANTA+V2 inspection scope uses the MAX INSPECT measurement and reporting software which comes with automatic pass-fail analysis. The MAX INSPECT software is the same platform used with the SUMIX interferometers. This makes it easy for operators to switch between end face inspection and end face geometry measurements.

MANTA V2+ ACCESSORIES

MANTA V2+ Benchtop Holder MANTA Single Fiber Adapter
Senko Part Number: MNT-STAND Senko Part Number: MNT-ADP
manta-stand-1 MNT-ADP

Click the link to access the PDF handout for part numbers and images of the inspection tips for the applicable connector.

SINGLE FIBER INSPECTION GUIDE MT MULTI FIBER INSPECTION GUIDE SPECIALITY CONNECTORS INSPECTION GUIDE

Guide for inspecting SC assemblies

Guide for inspecting FC assemblies

Guide for inspecting ST assemblies

Guide for inspecting MIL 38999 (MIL-DTL-29504/4 & /5 termini)

Guide for inspecting MIL 28876 (MIL DTL 29504/14 & /15 termini)

Guide for inspecting SMPTE 304M





NIST
International Electrotechnical Commission

The dimension of the MANTA V2+ are 7.5 cm (3”) height × 2.8 cm (1.1”) width × 23.3 cm (9.2”) length. The unit weighs 475 g (1.05 lbs) making it ideal for benchtop applications.

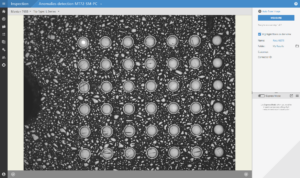

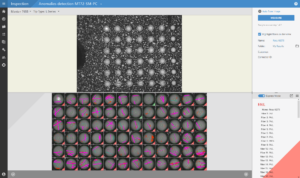

The inspection for MT end faces is a two scan process. The first step is to scan the left half of the end face. Rotate the the probe’s tip to scan the right end of the end face. The MaxInspect software will stitch the images together and consolidate the measurements into a single report.

The inspections times including the rotation of the scope would be:

  • 6.5 sec for 12 fiber MPO
  • 6.9 sec for 16 fiber MPO
  • 9.7 sec for 24 fiber MPO

The MANTA V2+ inspection scope running the latest version of the MAXINSPECT software measurement times are:6.5 sec for a 12 fibers MT end face6.9 sec for a 16 fibers MT end face9.7 sec for a 24 fibers MT end face.

YES! If you are considering the purchase of a high performance inspection scope like our MANTA V2+, you want to make sure the inspection scope will be able to meet your needs with accurate and reliable measurements. The best way to verify if the MANTA V2+ will meet your requirements is getting an evaluation unit in your hands. The Senko team will work with you through each step of the process. The first step to get started is to talk with your local Senko sales representative or email us at sales@senko.com.
