SMART CHECKER MPO TESTER 12 FIBER
SENKO Part Number: AFT-G-FC-MPO-02
- Polarity test in 2 sec
- TIA 568 Method A, B, C
- Works for flat and angled end faces
Email us at sales@senko.com or talk with your local SENKO Sales Representative for pricing.

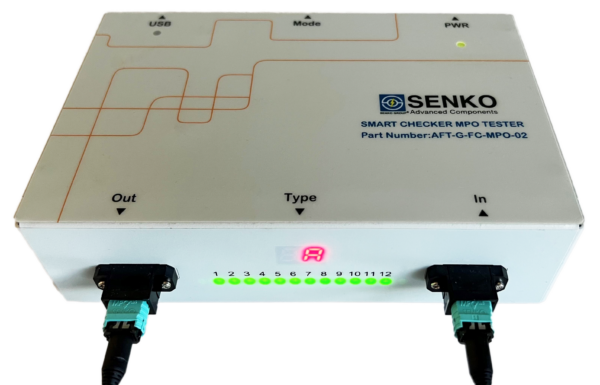

The SMART CHECKER MPO TESTER 12 Fiber verifies the polarity for 8F & 12F MPO assemblies to TIA 568 Methods A, B, C and the continuity of the individual fibers in the the MPO assembly. The tester will test both SM (angled) & MM (flat) MPO assemblies. The compact size, robust steel housing, highly stable light sources and rechargeable battery make the SMART CHECKER MPO TESTER 12 Fiber a must have for benchtop and field applications. The tester comes with a one year warranty for
| SENKO Part Number: | AFT-G-FC-MPO-02 | ||
| Applicable Connectors: | 12F and 8F MPO | Dimensions: | L =170mm (6.7″) W = 110mm (4.3′) H = 47mm (2.0″) |
| Output ʎ: | 650nm | Weight: | 800g (1.8lb) |
| Output power: | <0.4 mW | Operation Modes: | Continuous Wave, Pulse, Scanning |
| Output Port Configuration: | Pinned male MPO | Battery Life: | 5 hours of continuous service (full charge) |
| Input Port Configuration: | Pinned male MPO | 0% to 100% Charge time: | < 1hour |
OPTIONAL ACCESSORIES:
| SENKO Part Number | Description |
| SCK-SS-MPO | SENKO SMART CLEANER MPO End face click cleaner  |
| SCK-SS-MPO-GPB | SENKO Guide in hole brush cleaner  |
| AFT-G-FC-A-J1 | 12 Fiber Launch Cable for Pinned (Male) MPO → Use for testing MPO cassettes and pinned (male) assemblies → L= 0.5M 12F unpinned MPO to 12F unpinned MPO |
| AFT-G-FC-A-J2 | 12 Fiber Extension Cable for testing unpinned assemblies → Use for extra reach testing assemblies with a unpinned MPO → L = 0.5M 12F 12F unpinned MPO to 12F pinned MPO |
Network Installations
Fiber To The Home FTTH
Fiber To The Antenna FTTA and Distributed Antenna Systems DAS
Multiple Service Operators MSO
Military and Aerospace
Medical
Broadcast
The SMART CHECKER MPO TESTER comes with a one year warranty from the date of purchase. During the warranty period, SENKO will repair or replace any defective parts at no cost to our customer. Normal wear and tear, as well as damage caused by misuse or improper care, are not covered under this warranty.
