SMART CLEANER CASSETTE – MALE MT
SENKO Part Number: SCK-CC-200
- Cleans 400 pinned MPO, MT and SN-MT
- Sūpākurīnā™ manufacturing process
- Manual advance cleaning ribbon
Email us at sales@senko.com or talk with your local SENKO Sales Representative for pricing.

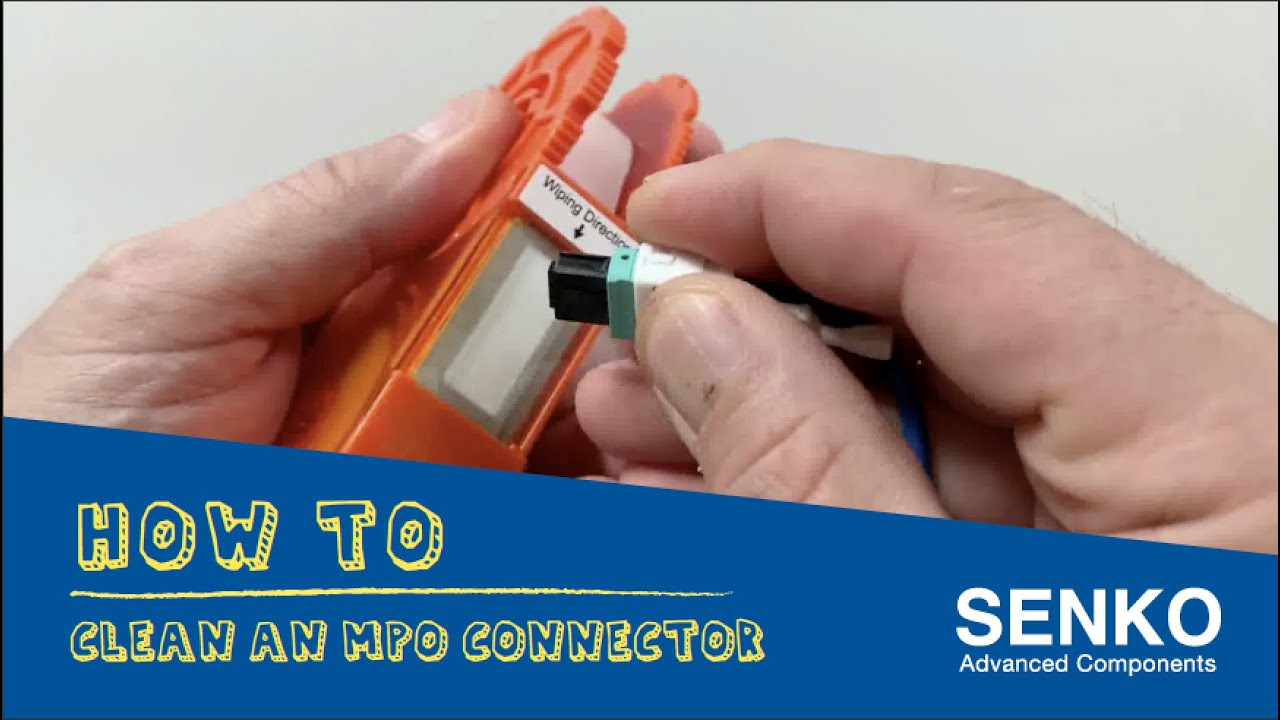

The SMART CLEANER CASSETTE – MALE MT is for cleaning MPO, SN-MT and MT ferrules with the guide pins. The cassette’s cleaning window works for 12 and 16 fiber arrays. The cassette’s compact size and affordable price make it ideal for use on production lines and on installation sites. The SMART CLEANER CASSETTE -MALE MT is manufactured in Japan using the Sūpākurīnā™ manufacturing process.
| Senko Part Number: | SCK-CC-200 |
| Number of Cleanings: | 400 MPO, SN-MT and MT ferrule |
| Cassette Dimensions: | Length: 115mm (4.5″) Height: 55mm (2.2″) Width: 25mm (1.0″) |
| Cleaning Window Dimensions: | Length: 25mm (1.0″) Width: 10mm (0.4″) |
| Weight: | 80g (0.2lb) |
| Applicable Connectors: | MPO Male for 8, 12, 16, 24, 32, 48 and 72 fibers SN-MT for 16 and 32 fibers MT ferrules for 8, 12, 16, 24, 32, 48 and 72 fibers |
Production
Mil-Aerospace
No. The clear plastic cover and the cassette’s internal guide track for the cleaning ribbon protect the cleaning ribbon from being cross contaminated from moisture and dust.

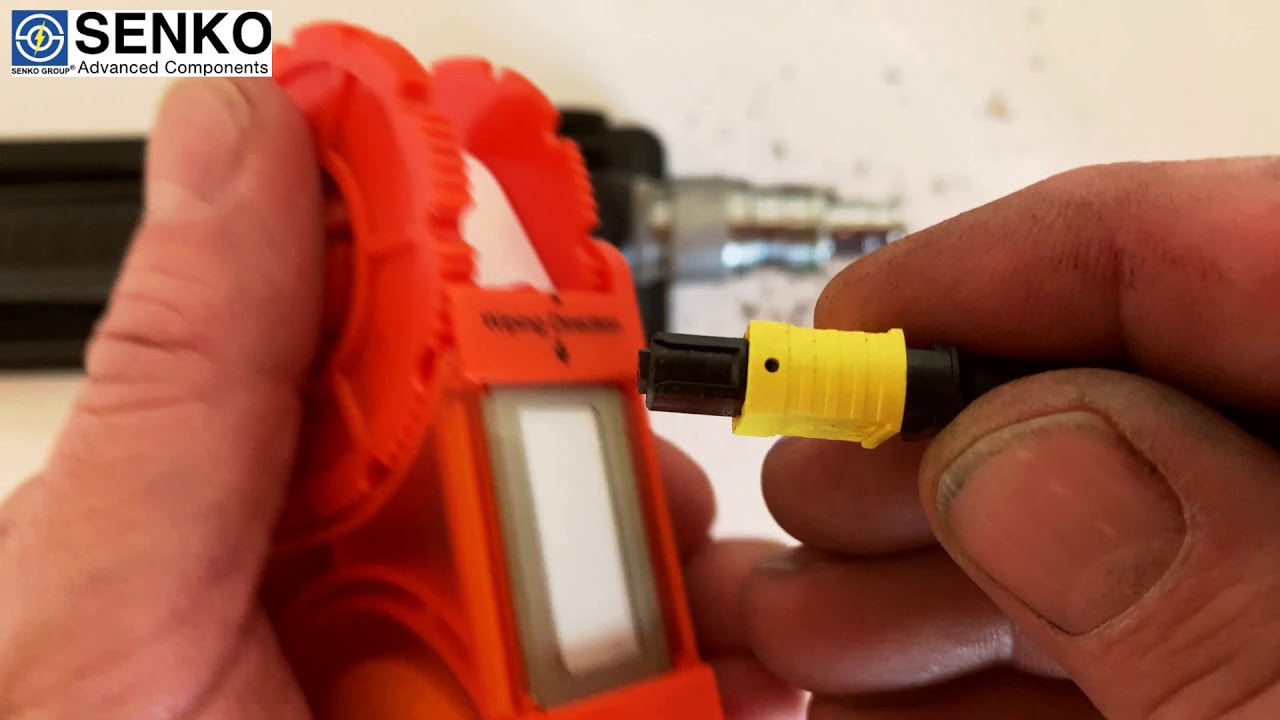

Yes. The most effective way to do a wet-dry cleaning is start by advancing the cleaning wheel to bring a fresh section of the cleaning ribbon into the cleaning window. Next apply small amount of the cleaning solvent directly on the cleaning ribbon. Start the wipe by placing the connector on the wet section and finish the wipe in the dry section of the wipe.
Use the same amount of force to the connector as would use if you were writing with a pen. The cleaning ribbon material and rubber backing underneath will protect the end face and prevent scratching during the wipe.
Sūpākurīnā™ is a special process that combines strict material selection standards with the tightly controlled and refined manufacturing processing for repeatedly producing an elite quality cleaning ribbon capable of meeting the fiber optic industry’s highest quality standards. If quality matters to your organization and getting the optimal performance from your fiber optic cleaning product is important, please insist on using the SMART CLEANER CASSETTE-MALE MT made using the Sūpākurīnā™ process.
