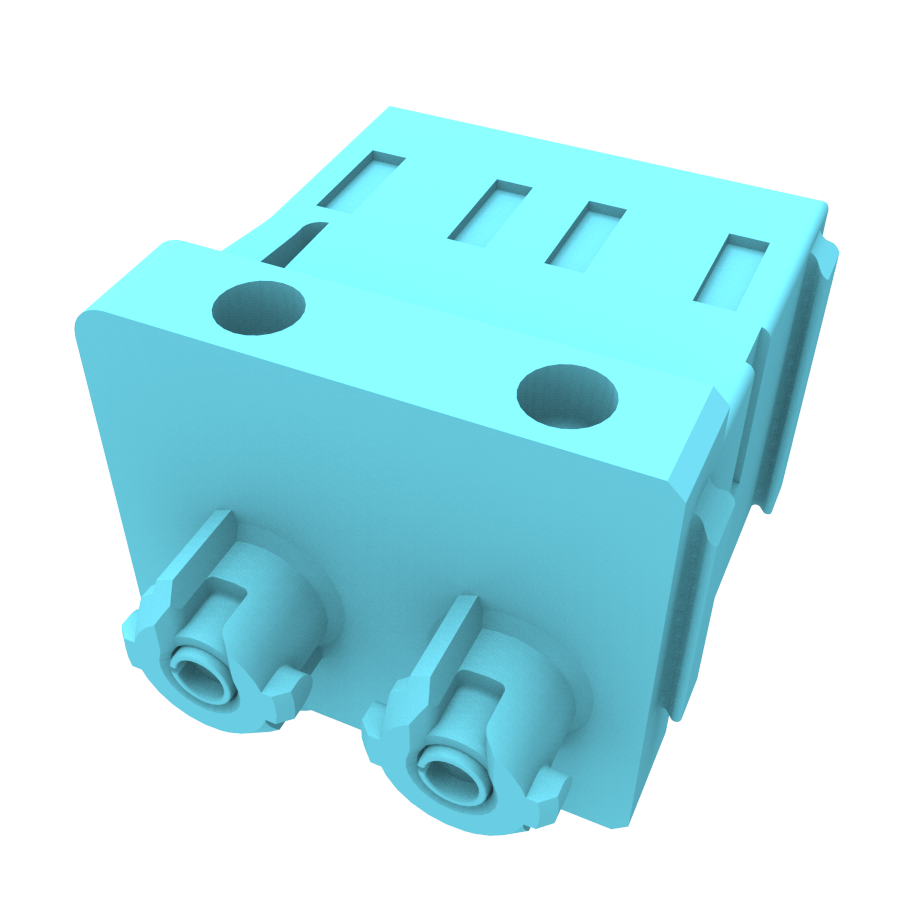

Micro LC Stackable Adapter

SENKO’s MICRO LC Stackable adapters are a high-density solution that allow for a standard LC connector to be mated to the Micro LC connector used in Behind the Wall (BTW) applications. Stacking feature allows for various width and height combinations.

  • Laser shutter option
  • Bayonet latching mechanism
  • Hybrid connection to standard LC
Parameters Specifications
Typical Insertion Loss (dB)* 0.10
Max Insertion Loss (dB)* 0.20
Operating Temperature (°C) -40 to +75
Humidity Resistance 95%
Durability 200 matings per GR-326-Core

* Based on Master Grade jumper to Low Loss random mating test



Data Center

On Board Optics

Medical

Wireless

Telecommunications

logo-rosh
Reach logo
IEC logo
TIA logo

The Micro LC adapter can be used in temperatures as low as -40°C and up to 75°C.

The adapters will accept industry standard LC connectors on one side and the other side will accept only Micro LC connectors.

It will offer dust protection until factory installed dust caps are removed. Once removed, this shutter design only offers laser protection. Other models are available that do offer dust protection.
