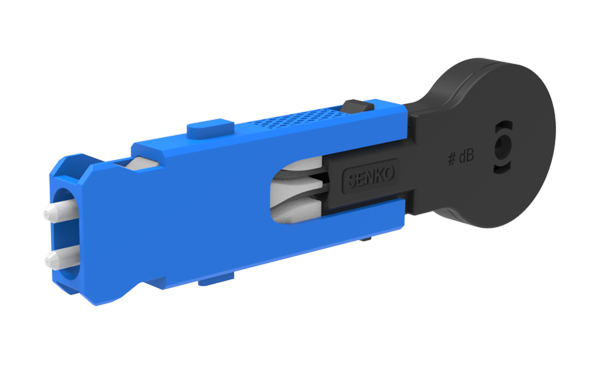

SENKO’S SN® Loopback is designed to provide a media of return patch for a fiber optic signal. Commonly used for burn-in testing and network troubleshooting, the high density push-pull tab design will fit into may applications.
- High Density Design
- UPC and APC polish
- Attenuation levels from 0-10dB
- Push-Pull housing for easy installation
|SM Premium Low Loss||SM Premium||SM Premium Low Loss||SM Premium||Premium|
|Typical Return Loss (dB)||≥55||≥65||≥25|
|Attenuation Tolerance||0dB: -0/+.5dB, 1-5dB: +/-.5dB, 6-10dB: +/-1dB|
|Operational Wavelengths (nm)||SM: 1310/1550 +/-40||MM: 850/1300 +/-40|
|Operating Temperature (°C)||– 40 to +75|
|Maxium Power Input (mW)||500|
The SN connector can be used in temperatures as low as -40°C and up to 75°C.
The loopback is rated for up to 500mw if properly cleaned and maintained.
