Before-and-after-gel-pad
MPO-cleaning-on-gel-pad

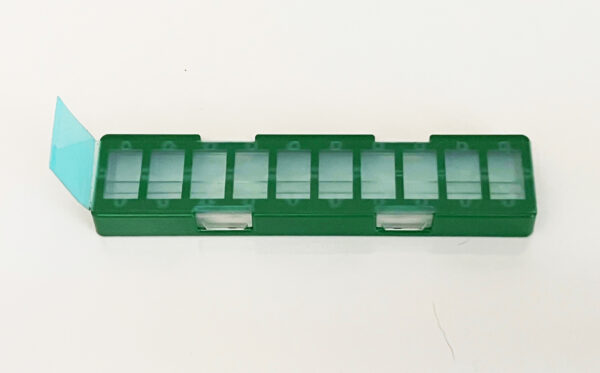

OPTRES GEL PAD

SENKO Part Number: SCK-PT-MPO-01

  • Simple Touch To Clean
  • Ideal for single fiber & MT end faces
  • Compact size size

Email us at sales@senko.com or talk with your local SENKO Sales Representative for pricing.

The OPTRES Gel Cleaning Pad by Tomoegawa uses a optical grade cleaning gel. he cleaning process is a simple. Pull back the cover and touch he end face onto the gel. The guide pins of male MPO connectors will penetrate into the gel to clean the whole surface of a MT ferrule plus guide pins. The Optres Gel Cleaning Pad compact size makes it ideal for use with test equipment and network installation cleaning kits. The gel material is non toxic and not flammable.

PART NUMBER: SCK-PT-MPO-01
CLEANING MEDIUM: No residue clear gel
BLOCK DIMENSIONS: Length: 98mm (3.9″)
Width: 22.5mm (0.9″)
Height: 9mm (0.4″)
CLEANING WINDOW DIMENSIONS: Length: 15.5mm (0.5″)
Width: 7.5mm (0.3″)
WEIGHT: 18g (0.04lb)
APPLICABLE CONNECTORS: MPO (pinned and unpinned)
LC duplex, SN, CS, MU
SC duplex, ST, FC
SMA 905, SMA 906

Field-Install-icon Network Installations

Central-Office-icon-copy Data Centers

FTTH-icon Fiber To The Home (FTTH)

medical-icon Medical

MSO-Icon MSO

aerospace-icon Mil-Aerospace



International Electrotechnical Commission
RoHS-logo
REACH logo
EAR99

The Optres Gel Cleaning Pad from Tomoegawa uses an engineered gel material that will conform to the end face geometry of single fiber and MT connectors. The gel causes dust particles on the connector end face to adhere and stay trapped in gel when contact is made. The guide pins of male MPO connectors will penetrate into the gel material enabling you to clean the whole surface of the MT end face. Tomoegawa’s gel material will not leave a residue behind.

Yes. The gel material in the Optres Gel Cleaning Pad is non flammable and non toxic making it safe to air ship. The gel pads are RoHS and REACH compliant.
