MU Adapter

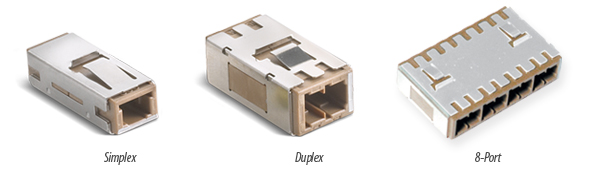

SENKO MU Patch Panel Adapters are available in simplex, duplex and 8-port configurations, with zirconia sleeve for high-precision alignment. MU Connectors are also available in pre-assembled (one-piece) versions, and in unassembled kits.
- NTT & JIS compliance
- NTT-MU hardware compatibility
- Ceramic precision alignment sleeves
Parameters | Specifications |
Typical Insertion Loss (dB)* | 0.10 |
Max Insertion Loss (dB)* | 0.20 |
Operating Temperature (°C) | -40 to +75 |
Humidity Resistance | 95% |
Durability | 200 matings per GR-326-Core |
* Based on Master Grade jumper to Low Loss random mating test
Data Center
Medical
Wireless
FTTH
Telecommunications
![logo-rosh](https://www.senko.com/wp-content/uploads/2021/09/logo-rosh-120x120.png)
![Reach logo](https://www.senko.com/wp-content/uploads/2021/09/Reach-Website-120x120.jpg)
![pngkey-com-telegraph-png-3390637](https://www.senko.com/wp-content/uploads/2021/08/pngkey-com-telegraph-png-3390637-120x43.png)
![JISpngegg](https://www.senko.com/wp-content/uploads/2021/08/JISpngegg-120x120.png)
The MU Standard adapter can be used in temperatures as low as -40°C and up to 85°C.
Yes, it will work with all industry standard MU connector and compatible with NTT & JIS standards.
Senko does offer custom color and mount styles. Ask you your local Senko sales person for more information.
