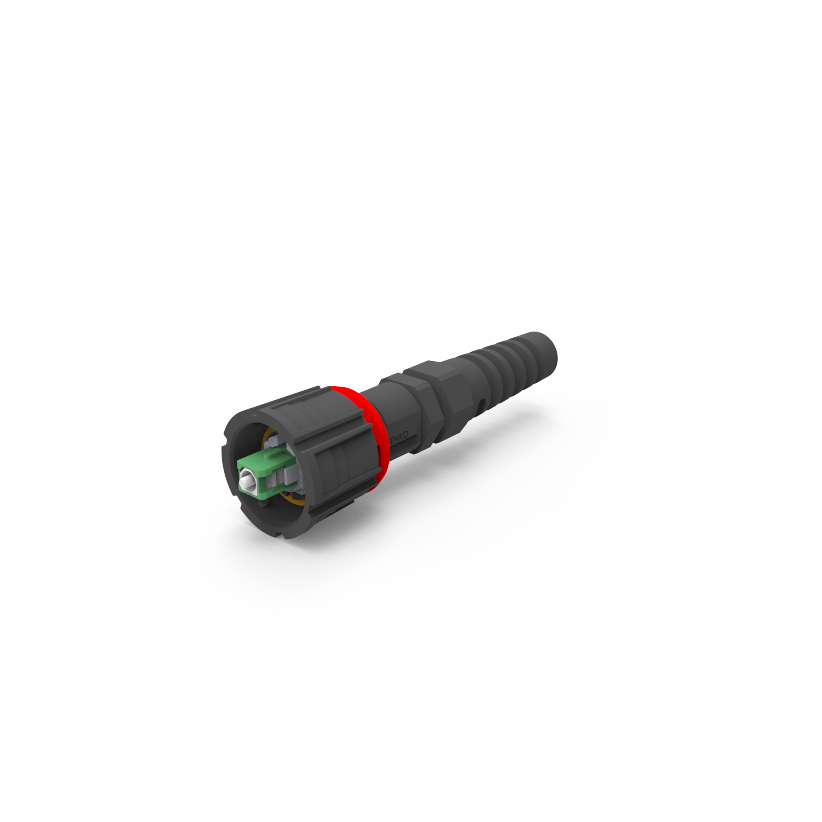

The IP-16 Series is SENKO’s flagship connectivity solution designed for outdoor applications and harsh environments. The high optical performance is paired with ergonomic mechanics for quick and easy installations. The IP-16 Series offers a IP68 rating protection with a simple bayonet mechanism, and the connector has Safe Lock Ring feature for a tamperproof protection.
- IP68 rated ruggedized connectors
- SC 1-fiber type for FTTH Network
- For drop assembly and other OSP use
- Available with various cable size
| Parameters | Single-mode | Multimode | |||
| UPC | UPC | APC | APC | MM | |
| Low Loss | Standard | Low Loss | Standard | Standard | |
| Typical Insertion Loss (dB) | 0.05 | 0.08 | 0.07 | 0.12 | 0.10 |
| Max Insertion Loss (dB) | 0.15 | 0.20 | 0.15 | 0.25 | 0.20 |
| Typical Return Loss (dB) | ≥55 | ≥65 | ≥25 | ||
| Operating Temperature (°C) | – 40 to +75 | ||||
| Ferrule Ø | 125μm | 127μm | |||
| IP-Rating1 | IP68 | ||||
| Pull Force | 100lbf or 450N | ||||
1 The IP rating was validated using a SENKO sourced cable and procedure. It is recommended to retest IP rating for any other cable types.
The first digit represents the level of protection against solid bodies such as dust, and the second digit does the degree of protection against water. For example, IP68 means no ingress of dust, no water ingress >1m, >30mins.
What cable diameter can be supported?
When the bayonet collar is fully engaged in lock position, the Safe Lock Ring can be slid up to avoid unintentional engagement.
