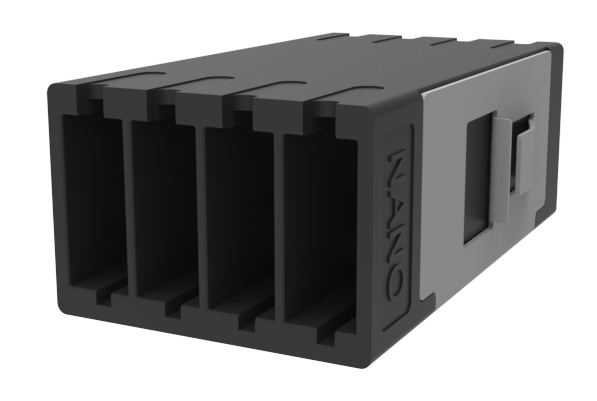

SN-MT Adapter

The SN-MT 4 channel Adapter accepts both SN-MT Connector and SN-MT Junior Connector on behind the wall (BTW) side. The SN-MT Adapter has the same foot print as the SN Adapter and houses a total of 64-Fibers in one adapter. The SN-MT Adapter has distinct keys to accept either 8-Fibers or 16-Fibers

  • Same SN Adapter foot print
  • Distinct keys for 8F and 16F
  • Houses up to 64F in one adapter
Parameters1 Single-mode
Operating Temperature (°C) -40 to +75
Durability 50 times per GR-1435

Notes:
1. Parameters listed are target specifications



logo-rosh

Both connector and adapter are keyed to prevent mis-insertion.

No, SN-MT adapter as well as the connector is the same size with SN.

It will accept SN-MT connector on the front side, and accepts both SN-MT and SN-MT Junior connector on the BTW side.
