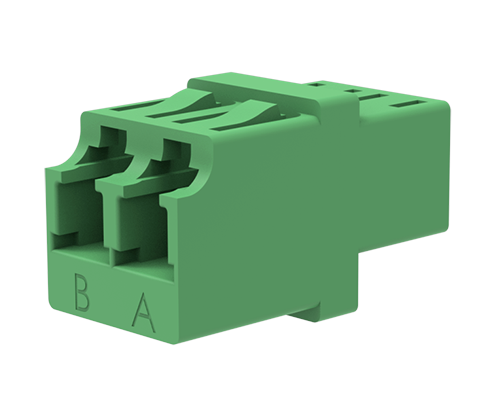

SENKO’s LC standard adapter has a compact design that fits into industry standard RJ-45 style outlets and panels.
- Fits standard RJ-45 style outlets
- Telcordia, TIA and IEC Compliant
- Precision zirconia alignment sleeves
- UL-Rated materials
| Parameters | Specifications |
|---|---|
| Typical Insertion Loss (dB)* | 0.10 |
| Max Insertion Loss (dB)* | 0.20 |
| Operating Temperature (°C ) | -40 to +75 |
| Humidity Resistance | 95% |
| Durability | 200 matings per GR-326-Core |
* Based on Master Grade jumper to Low Loss random mating test
Data Center
On Board Optics
Medical
Wireless
Telecommunications
The LC adapter can be used in temperatures as low as -40°C and up to 75°C.
Yes, it will work with all industry standard LC connectors.
No, this style fits compact RJ-45 type footprint. SENKO’s premium and TOP style adapters do fit in SC panel footprint.
