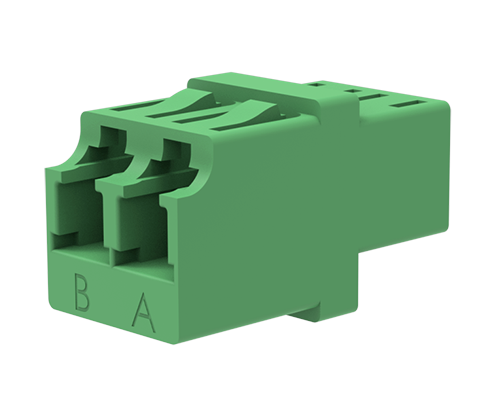

LC Standard Adapter

SENKO’s LC standard adapter has a compact design that fits into industry standard RJ-45 style outlets and panels.

  • UL-Rated materials
  • Telcordia, TIA and IEC Compliant
  • Precision zirconia alignment sleeves



Parameters Specifications
Typical Insertion Loss (dB)* 0.10
Max Insertion Loss (dB)* 0.20
Operating Temperature (°C ) -40 to +75
Humidity Resistance 95%
Durability 200 matings per GR-326-Core

* Based on Master Grade jumper to Low Loss random mating test

Data Center

On Board Optics

Medical

Wireless

Telecommunications

logo-rosh
Reach logo
IEC logo
TIA logo

The LC adapter can be used in temperatures as low as -40°C and up to 75°C.

Yes, it will work with all industry standard LC connectors.

No, this style fits compact RJ-45 type footprint. SENKO’s premium and TOP style adapters do fit in SC panel footprint.
