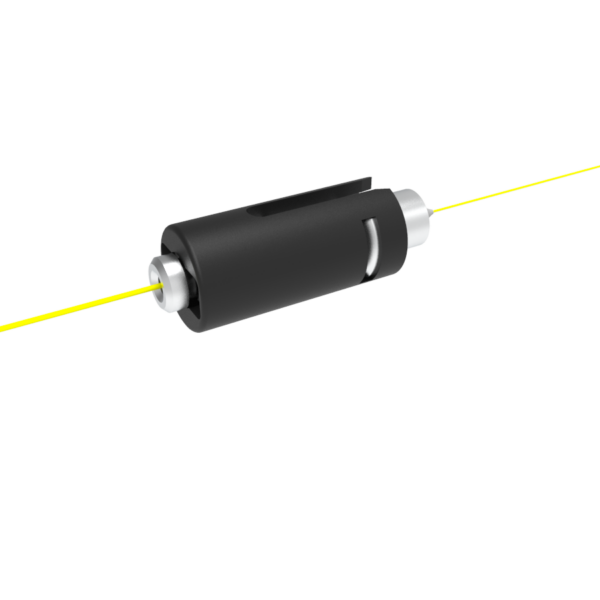

OSA Connector
SENKO’s OSA connector is designed for mid-plane applications with options for single-mode and polarization maintaining fibers. The OSA allows for a high quality board level connection point without the need for a splice.
- Space saving design
- Snap-on latching mechanism
- Suitable for Coherent application
| Parameters | Single-mode |
| UPC | |
| Standard | |
| Typical Insertion Loss (dB) | 0.12 |
| Max Insertion Loss (dB) | 0.30 |
| Typical Return Loss (dB) | ≥55 |
| Operating Temperature (°C) | -40 to +75 |
| Durability | <0.2dB typical change, 500 matings |
Data Center
On Board Optics
Sensor
Telecommunications
The OSA connector can be used in temperatures as low as -40°C and up to 75°C.
It is available for SM and PM fiber.
The OSA connector is just over 14mm in length.
