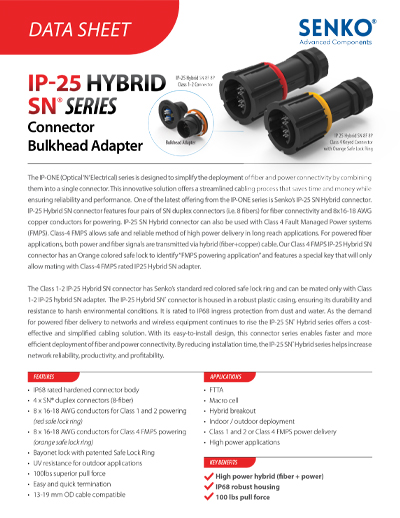

IP-25 SN Hybrid Connector
SENKO’s IP-ONE (Optical ‘N’ Electrical) series accommodates power and fiber combined in one single connector. This IP68 rated hybrid connector helps simplify your connectivity with reduced cable and connectors featuring the Safe Lock Ring for a tamperproof protection. IP-25 8F SN series features four channels of SN duplex connector for fiber connectivity. This connector also features 8 x 16-18 AWG conductors for Class 4 FMPS and Class 1 or 2 powering applications.
- IP68 rated hybrid connector​
- 4 x SN® duplex connectors (8-fiber)​
- 8 x 16-18AWG for Class 1-2 powering applications – Red Safe lock ring​
- 8 x 16-18AWG for Class 4 powering applications – Orange Safe lock ring​
- Compatible with 13 – 19mm OD cable​
- For High Power hybrid application – Up to 600V AC/DC
| Parameters | Single-mode | Multimode | |
| UPC | APC | MM | |
| Standard | Standard | Standard | |
| Typical Insertion Loss (dB) | 0.08 | 0.12 | 0.10 |
| Max Insertion Loss (dB) | 0.20 | 0.25 | 0.20 |
| Typical Return Loss (dB) | ≥55 | ≥65 | ≥25 |
| Operating Temperature (°C) | – 40 to 75 | ||
| Ferrule ø | 125μm | 127μm | |
| IP-Rating | IP681 | ||
| Pull Force | 100 lbf or 450N for 60 seconds | ||
| Contact Power Rating | |||
| Maximum Voltage | 600V / AC DC | ||
1 The IP rating was validated using a SENKO sourced cable and procedure. It is recommended to retest IP rating for any other cable types.
2 Current Rating: At 25C ambient temperature
- Fiber to the Antenna (FTTA)​
- Macro Cell powering​
- Micro cell powering​
- Indoor / outdoor deployment​
- Hybrid Breakout​
- Class 1 and 2 or Class 4 FMPS power delivery
The first digit represents the level of protection against solid bodies such as dust, and the second digit does the degree of protection against water. For example, IP68 means no ingress of dust, no water ingress >2m, >30mins.
IP-25 series supports from 13.0-19.0mm cable OD.
When the bayonet collar is fully engaged in lock position, the Safe Lock Ring can be slid up to avoid unintentional engagement.
