MANTA HM

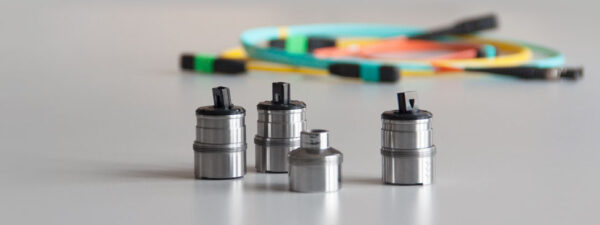

The MANTA HM inspection scope features a 20MP sensor for generating high contrast images for making the industry’s most accurate measurements of sub micron size anomalies on a ferrule end face. This scope offers the high performance inspection demands on production lines, laboratories, incoming inspection, data centers and central offices. The MANTA HM has a wide range inspection profiles and inspection tips available for most single fiber and multi-fiber optical connectors, patch cords and bulkhead including MT, MPO, CS, SN, LC, FC, SC, E2000™, QSFP, ARINC, MIL Spec termini, High-power SMA, and more. The MANTA HM inspection scope would be used for visual inspection of fiber optic connector end faces for identifying scratches, contamination and other surface defects as small 0.5μm. The MAXINSPECT inspection software has an autofocus feature and will perform highly accurate and repeatable measurements of the ferrule end face. The software default is set to IEC 61300-3-35 and offers the user the ability to customize the pass-fail measurements for customized reports.

  • 4.2mm × 2.8mm field of view
  • 0.5μm defect detection
  • <3 sec inspect for 12 & 16 fiber MT
  • Pass/Fail LED indication light
Parameters Specifications
SENKO PART NUMBER: SMX-MANTA-HM
Applications: Single Fiber

Multi-Fiber

Multi Core fibers

Measurement times: 12 fiber MPO = 2.6 secs

16 fiber MPO = 3.5 secs

24 fiber MPO = 4.5 secs

72 fiber MPO = 10 secs

Field of view: 4.2mm × 2.8mm
Defect size detection: 0.5μm
Optical resolution: 1.5μm
Magnification¹: 360x
Focus: Autofocus/ Manual
Camera type: Digital, USB 3.0
Power source: USB 3.0 Port of PC
Cable: USB 3.0, Detachable
Compatible with: Desktop PC, Laptop, Tablet
Dimensions:

(H × W × L)

70 × 28 × 246 mm

(2.52 × 1.1 × 9.17 inches)

Weight: 491 g

(1.08 lbs)

1 Calculated for 24’’ screen (1920 × 1080)

Accessories

Clean-MNT-STAND clean-verifier-image clean-sf-adapter

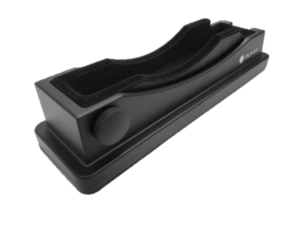

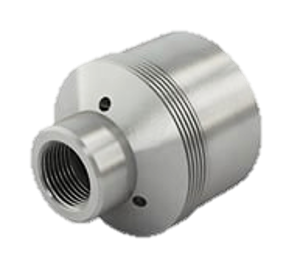

Benchtop holder for MANTA HM. MT Polarity and Continuity Verification Module. Adapter for using single fiber inspection tips.
Senko Part Number Senko Part Number Senko Part Number
MNT-W-STAND MPO-Verifier MNT-ADP

Benchtop production

Research labs

MIL-Aerospace

Data Centers

Central Offices

International Electrotechnical Commission

The MANTA HM scope needs to connect to a PC running Windows 10 or higher operating system with an Intel Core i5 or higher processer with at least 4GB of RAM. The PC must have at least one USB 3.0 port for connection. The MANTA HM may be connected to tablets running Windows 10 or higher with an Intel Core i7 processor with 4GB of RAM. The screen resolution should be 1280 x 800 px or higher on 10” or larger display.

Please contact your local Senko sales representative of email us at sales@senko.com if with questions or issues with your SMART PROBE 2 WIFI inspection scope.

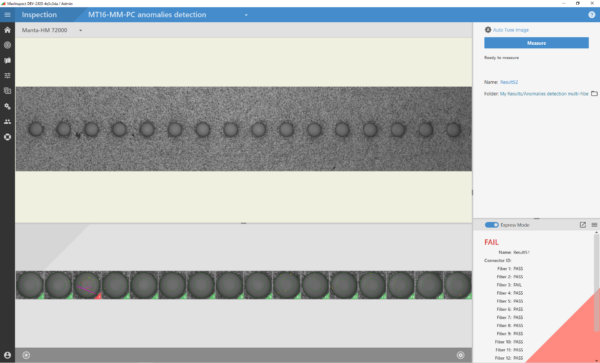

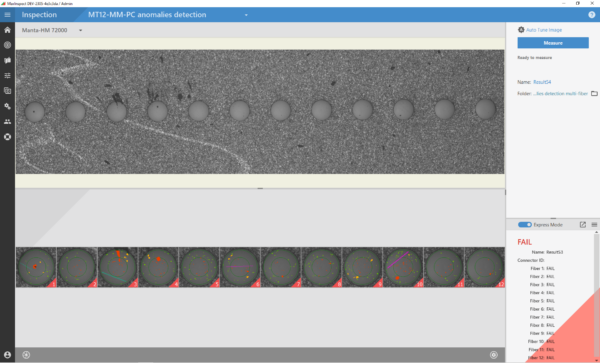

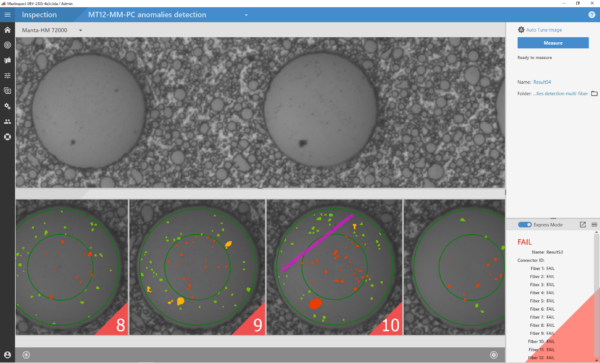

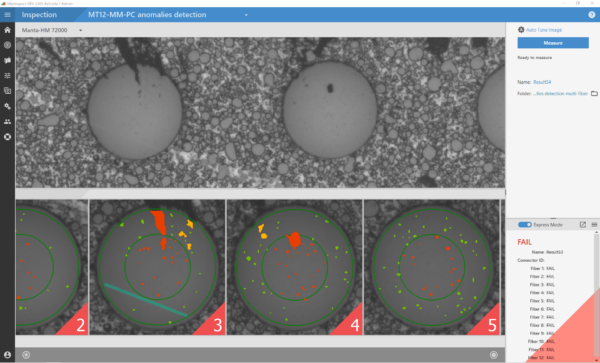

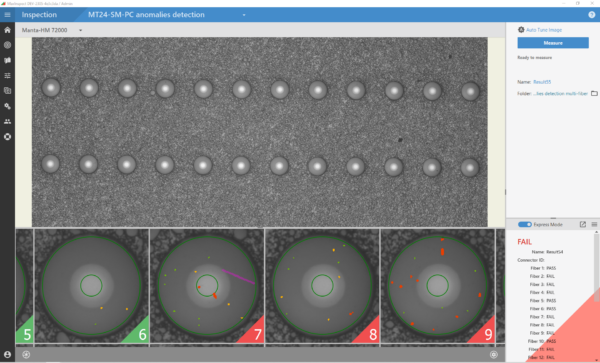

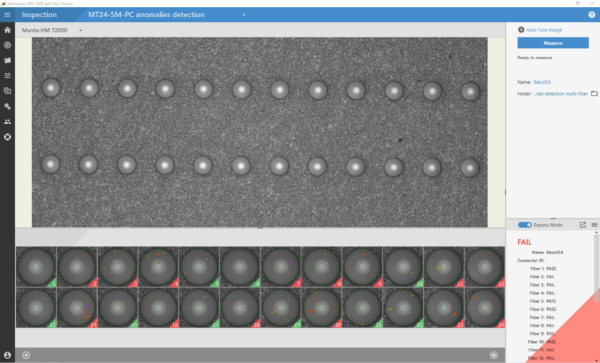

The MANTA HM inspection scope running the latest version of the MaxInspect software is extremely fast. The measurement times are:

  • 2.6 sec for a 12 fibers MT
  • 3.5 sec for a 16 fibers MT
  • 4.5 sec for a 24 fibers MT
  • 10 sec for a 72 fibers MT

Please contact your local Senko sales representative of email us at sales@senko.com if with questions or issues with your SMART PROBE 2 WIFI inspection scope.

The dimension of the MANTA HM are 7cm (2.7”) in height × 2.8 cm (1.1”) wide × 24.6 cm (9.7”) length. The unit weighs 491 g (1.08 lbs) making it ideal for benchtop applications.

Please contact your local Senko sales representative of email us at sales@senko.com if with questions or issues with your SMART PROBE 2 WIFI inspection scope.

YES! If you are considering the purchase of a high performance inspection scope like our MANTA HM, you want to make sure the inspection scope will be able to meet your needs with accurate and reliable measurements. The best way to verify if the MANTA HM will meet your requirements is getting an evaluation unit in your hands. The Senko team will work with you through each step of the process. The first step to get started is to talk with your local Senko sales representative or email us at sales@senko.com.
